COMPOUND NPA032735

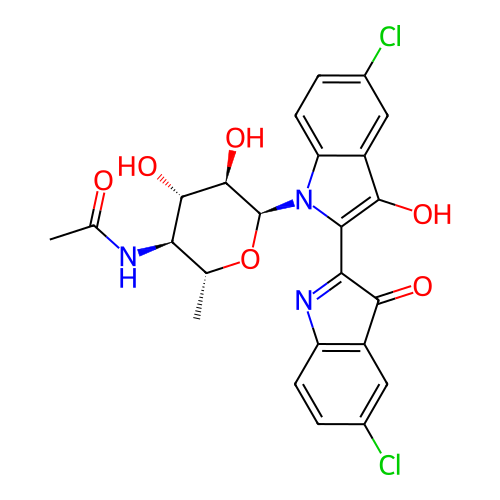

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA032735
CLUSTER ID	1266
NODE ID	1073
NAME	Akashin B
FORMULA	C24H21Cl2N3O6
MOLECULAR WEIGHT (Da)	518.3530
ACCURATE MASS (Da)	517.0807
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp. GW48/1
InChIKey	GDDCIFUYTHWXSY-SAIARUEOSA-N
InChI	InChI=1S/C24H21Cl2N3O6/c1-9-17(27-10(2)30)22(33)23(34)24(35-9)29-16-6-4-12(26)8-14(16)21(32)19(29)18-20(31)13-7-11(25)3-5-15(13)28-18/h3-9,17,22-24,32-34H,1-2H3,(H,27,30)/t9-,17-,22+,23-,24+/m1/s1
SMILES	CC(=O)N[C@H]1[C@H](O)[C@@H](O)[C@@H](N2C(C3=NC4=C(C=C(Cl)C=C4)C3=O)=C(O)C3=CC(Cl)=CC=C32)O[C@@H]1C

ORIGINAL ISOLATION REFERENCE

CITATION	Maskey, R.P.; Grün-Wollny, I.; Laatsch, H. Isolation and structure elucidation of Diazaquinomycin C from a terrestrial streptomyces sp. and confirmation of the akashin structure. Natural Product Research 2005 19 (2) 137-142.
DOI	10.1080/14786410410001704741	PMID	-

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
