COMPOUND NPA030015

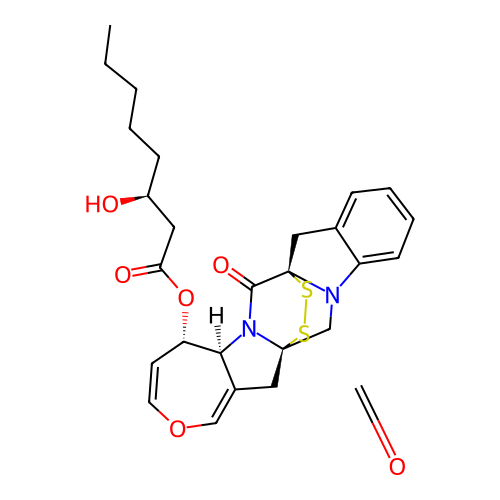

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA030015
CLUSTER ID	83
NODE ID	78
NAME	Graphiumin I
FORMULA	C26H28N2O6S2
MOLECULAR WEIGHT (Da)	528.6520
ACCURATE MASS (Da)	528.1389
ORIGIN ORGANISM TYPE	Fungus
ORIGIN GENUS	Graphium
ORIGIN SPECIES	sp. OPMF00224
InChIKey	UGWJLBJDVGMOCP-ANPOYOEPSA-N
InChI	InChI=1S/C26H28N2O6S2/c1-2-3-4-8-18(29)12-21(30)34-20-10-11-33-15-17-14-26-23(31)27-19-9-6-5-7-16(19)13-25(27,35-36-26)24(32)28(26)22(17)20/h5-7,9-11,15,18,20,22,29H,2-4,8,12-14H2,1H3/t18-,20-,22-,25+,26+/m0/s1
SMILES	CCCCC[C@H](O)CC(=O)O[C@H]1C=COC=C2C[C@@]34SS[C@]5(CC6=CC=CC=C6N5C3=O)C(=O)N4[C@@H]21

ORIGINAL ISOLATION REFERENCE

CITATION	Fukuda T; Nagai K; Kurihara Y; Kanamoto A; Tomoda H Graphiumins I and J, New Thiodiketopiperazines from the Marine-derived Fungus Graphium sp. OPMF00224 Natural Product Sciences 2015 21 (4) 255.
DOI	10.20307/nps.2015.21.4.255	PMID	-

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Eukarya	-	2759
Kingdom	Fungi	MycoBank	4751
Phylum	Ascomycota	MycoBank	4890
Class	Sordariomycetes	MycoBank	147550
Order	Microascales	MycoBank	5592
Family	Microascaceae	MycoBank	5593
Genus	Graphium	MycoBank	1503932

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
