COMPOUND NPA028646

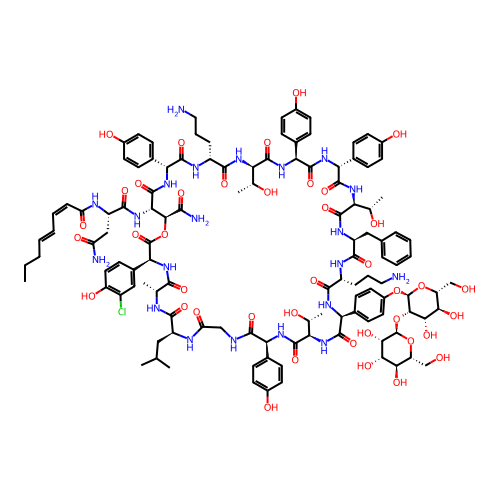

STRUCTURE
Image structure
EXPORT OPTIONS PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW See Global
EXTERNAL LINKS
npmrd logo unichem logo
PROPERTIES
NPAID NPA028646
CLUSTER ID 8560
NODE ID 4418
NAME Ramoplanin A1
FORMULA C118H152ClN21O40
MOLECULAR WEIGHT (Da) 2540.0740
ACCURATE MASS (Da) 2538.0194
ORIGIN ORGANISM TYPE Bacterium
ORIGIN GENUS Actinoplanes
ORIGIN SPECIES sp. ATCC 33076
InChIKey QMJRFQRMRCJRIV-NIIZMFKTSA-N
InChI InChI=1S/C118H152ClN21O40/c1-8-9-10-11-15-22-81(152)126-76(50-80(122)151)106(165)140-92-98(100(123)159)179-116(175)91(65-33-44-77(150)71(119)49-65)139-101(160)55(4)125-104(163)74(47-54(2)3)127-82(153)51-124-107(166)86(60-23-34-66(146)35-24-60)135-110(169)85(58(7)145)133-112(171)88(64-31-42-70(43-32-64)176-118-99(96(157)94(155)79(53-142)178-118)180-117-97(158)95(156)93(154)78(52-141)177-117)134-103(162)72(20-16-45-120)128-105(164)75(48-59-18-13-12-14-19-59)130-108(167)83(56(5)143)132-113(172)89(62-27-38-68(148)39-28-62)137-114(173)90(63-29-40-69(149)41-30-63)136-109(168)84(57(6)144)131-102(161)73(21-17-46-121)129-111(170)87(138-115(92)174)61-25-36-67(147)37-26-61/h10-15,18-19,22-44,49,54-58,72-76,78-79,83-99,117-118,141-150,154-158H,8-9,16-17,20-21,45-48,50-53,120-121H2,1-7H3,(H2,122,151)(H2,123,159)(H,124,166)(H,125,163)(H,126,152)(H,127,153)(H,128,164)(H,129,170)(H,130,167)(H,131,161)(H,132,172)(H,133,171)(H,134,162)(H,135,169)(H,136,168)(H,137,173)(H,138,174)(H,139,160)(H,140,165)/b11-10+,22-15-/t55-,56+,57-,58-,72-,73-,74+,75+,76+,78-,79-,83+,84-,85-,86+,87-,88+,89-,90+,91+,92+,93-,94-,95+,96+,97+,98+,99+,117-,118+/m1/s1
SMILES CCC/C=C/C=C\C(=O)N[C@@H](CC(N)=O)C(=O)N[C@@H]1C(=O)N[C@H](C2=CC=C(O)C=C2)C(=O)N[C@H](CCCN)C(=O)N[C@H]([C@@H](C)O)C(=O)N[C@@H](C2=CC=C(O)C=C2)C(=O)N[C@H](C2=CC=C(O)C=C2)C(=O)N[C@@H]([C@H](C)O)C(=O)N[C@@H](CC2=CC=CC=C2)C(=O)N[C@H](CCCN)C(=O)N[C@@H](C2=CC=C(O[C@H]3O[C@H](CO)[C@@H](O)[C@H](O)[C@@H]3O[C@H]3O[C@H](CO)[C@@H](O)[C@H](O)[C@@H]3O)C=C2)C(=O)N[C@H]([C@@H](C)O)C(=O)N[C@@H](C2=CC=C(O)C=C2)C(=O)NCC(=O)N[C@@H](CC(C)C)C(=O)N[C@H](C)C(=O)N[C@@H](C2=CC(Cl)=C(O)C=C2)C(=O)O[C@@H]1C(N)=O
ORIGINAL ISOLATION REFERENCE
CITATION Ciabatti R; Kettenring JK; Winters G; Tuan G; Zerilli L; Cavalleri B Ramoplanin (A-16686), a new glycolipodepsipeptide antibiotic. III. Structure elucidation. Journal of Antibiotics 1989 42 (2) 254-267.
DOI 10.7164/antibiotics.42.254 PMID 2597278
ORIGINAL ISOLATION TAXONOMY
RANK NAME DB LINK NCBI
Domain Bacteria LPSN 2
Phylum Actinobacteria LPSN 201174
Class Actinobacteria LPSN -
Order Micromonosporales LPSN 85008
Family Micromonosporaceae LPSN 28056
Genus Actinoplanes LPSN 1865
CLASSYFIRE
Show Hide
NP CLASSIFIER
Show Hide
