COMPOUND NPA024797

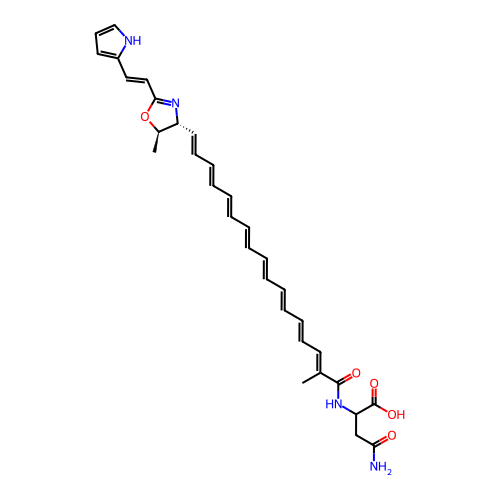

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA024797
CLUSTER ID	743
NODE ID	647
NAME	DKxanthene 556
FORMULA	C32H36N4O5
MOLECULAR WEIGHT (Da)	556.6630
ACCURATE MASS (Da)	556.2686
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Myxococcus
ORIGIN SPECIES	xanthus DK1050
InChIKey	JGWQTBBYPIXQNM-XUYNYAPBSA-N
InChI	InChI=1S/C32H36N4O5/c1-24(31(38)36-28(32(39)40)23-29(33)37)17-14-12-10-8-6-4-3-5-7-9-11-13-15-19-27-25(2)41-30(35-27)21-20-26-18-16-22-34-26/h3-22,25,27-28,34H,23H2,1-2H3,(H2,33,37)(H,36,38)(H,39,40)/b5-3+,6-4+,9-7+,10-8+,13-11+,14-12+,19-15+,21-20+,24-17+/t25-,27-,28?/m1/s1
SMILES	C[C@@H]1[C@H](N=C(O1)/C=C/C2=CC=CN2)/C=C/C=C/C=C/C=C/C=C/C=C/C=C/C=C(\C)/C(=O)NC(CC(=O)N)C(=O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Meiser P; Weissman KJ; Bode HB; Krug D; Dickschat JS; Sandmann A; Müller R DKxanthene biosynthesis--understanding the basis for diversity-oriented synthesis in myxobacterial secondary metabolism. Chemistry & Biology 2008 15 (8) 771-781.
DOI	10.1016/j.chembiol.2008.06.005	PMID	18721748

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Proteobacteria	LPSN	1224
Class	Deltaproteobacteria	LPSN	28221
Order	Myxococcales	LPSN	29
Family	Myxococcaceae	LPSN	31
Genus	Myxococcus	LPSN	32

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
