COMPOUND NPA024650

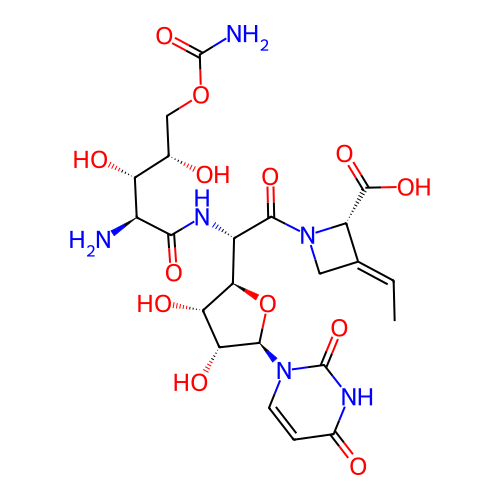

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA024650
CLUSTER ID	2271
NODE ID	1799
NAME	Polyoxin K
FORMULA	C22H30N6O13
MOLECULAR WEIGHT (Da)	586.5110
ACCURATE MASS (Da)	586.1871
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	cacaoi var asoensis
InChIKey	ABZGUBNFEGMGPE-MQNVTSSDSA-N
InChI	InChI=1S/C22H30N6O13/c1-2-7-5-28(12(7)20(36)37)18(35)11(26-17(34)10(23)13(31)8(29)6-40-21(24)38)16-14(32)15(33)19(41-16)27-4-3-9(30)25-22(27)39/h2-4,8,10-16,19,29,31-33H,5-6,23H2,1H3,(H2,24,38)(H,26,34)(H,36,37)(H,25,30,39)/b7-2+/t8-,10-,11-,12-,13+,14-,15+,16+,19+/m0/s1
SMILES	C/C=C/1\CN([C@@H]1C(=O)O)C(=O)[C@H]([C@@H]2[C@H]([C@H]([C@@H](O2)N3C=CC(=O)NC3=O)O)O)NC(=O)[C@H]([C@@H]([C@H](COC(=O)N)O)O)N

ORIGINAL ISOLATION REFERENCE

CITATION	Isono K; Asahi K; Suzuki S Studies on polyoxins, antifungal antibiotics. 13. The structure of polyoxins. Journal of the American Chemical Society 1969 91 (26) 7490-7505.
DOI	10.1021/ja01054a045	PMID	5358618

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
