COMPOUND NPA024647

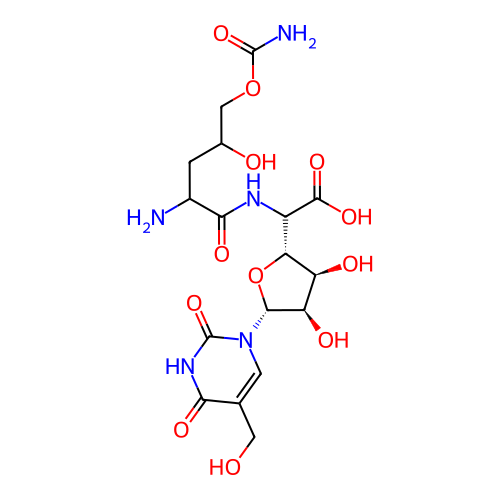

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA024647
CLUSTER ID	2271
NODE ID	1799
NAME	Polyoxin G
FORMULA	C17H25N5O12
MOLECULAR WEIGHT (Da)	491.4100
ACCURATE MASS (Da)	491.1500
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	cacaoi var asoensis
InChIKey	PTLPNIZVMLFTPS-ZQSRIOIHSA-N
InChI	InChI=1S/C17H25N5O12/c18-7(1-6(24)4-33-16(19)31)13(28)20-8(15(29)30)11-9(25)10(26)14(34-11)22-2-5(3-23)12(27)21-17(22)32/h2,6-11,14,23-26H,1,3-4,18H2,(H2,19,31)(H,20,28)(H,29,30)(H,21,27,32)/t6?,7?,8?,9-,10+,11+,14+/m0/s1
SMILES	C1=C(C(=O)NC(=O)N1[C@H]2[C@@H]([C@@H]([C@H](O2)C(C(=O)O)NC(=O)C(CC(COC(=O)N)O)N)O)O)CO

ORIGINAL ISOLATION REFERENCE

CITATION	Isono K; Asahi K; Suzuki S Studies on polyoxins, antifungal antibiotics. 13. The structure of polyoxins. Journal of the American Chemical Society 1969 91 (26) 7490-7505.
DOI	10.1021/ja01054a045	PMID	5358618

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
