COMPOUND NPA024643

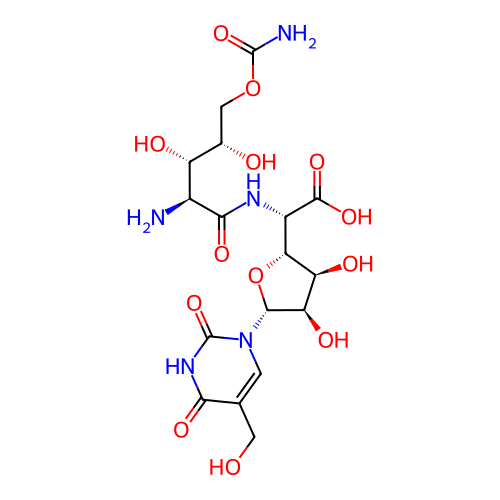

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA024643
CLUSTER ID	2271
NODE ID	1799
NAME	Polyoxin B
FORMULA	C17H25N5O13
MOLECULAR WEIGHT (Da)	507.4090
ACCURATE MASS (Da)	507.1449
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	cacaoi var asoensis
InChIKey	YFZNSPMAOIVQRP-YVKGXWRCSA-N
InChI	InChI=1S/C17H25N5O13/c18-6(8(25)5(24)3-34-16(19)32)13(29)20-7(15(30)31)11-9(26)10(27)14(35-11)22-1-4(2-23)12(28)21-17(22)33/h1,5-11,14,23-27H,2-3,18H2,(H2,19,32)(H,20,29)(H,30,31)(H,21,28,33)/t5-,6-,7-,8+,9-,10+,11+,14+/m0/s1
SMILES	C1=C(C(=O)NC(=O)N1[C@H]2[C@@H]([C@@H]([C@H](O2)[C@@H](C(=O)O)NC(=O)[C@H]([C@@H]([C@H](COC(=O)N)O)O)N)O)O)CO

ORIGINAL ISOLATION REFERENCE

CITATION	Isono K; Asahi K; Suzuki S Studies on polyoxins, antifungal antibiotics. 13. The structure of polyoxins. Journal of the American Chemical Society 1969 91 (26) 7490-7505.
DOI	10.1021/ja01054a045	PMID	5358618

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
