COMPOUND NPA021522

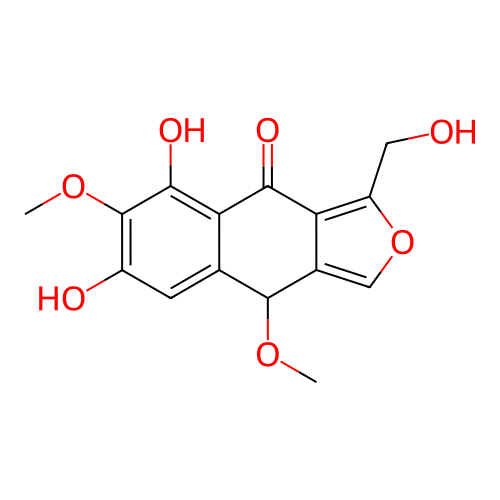

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA021522
CLUSTER ID	6679
NODE ID	4631
NAME	JBIR-76
FORMULA	C15H14O7
MOLECULAR WEIGHT (Da)	306.2700
ACCURATE MASS (Da)	306.0740
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp. RI-77
InChIKey	RNOVNLHWRVTBCX-UHFFFAOYSA-N
InChI	InChI=1S/C15H14O7/c1-20-14-6-3-8(17)15(21-2)13(19)11(6)12(18)10-7(14)5-22-9(10)4-16/h3,5,14,16-17,19H,4H2,1-2H3
SMILES	COC1C2=CC(=C(C(=C2C(=O)C3=C(OC=C13)CO)O)OC)O

ORIGINAL ISOLATION REFERENCE

CITATION	Motohashi, Keiichiro; Izumikawa, Miho; Kagaya, Noritaka; Takagi, Motoki; Shin-Ya, Kazuo JBIR-76 and JBIR-77, modified naphthoquinones from Streptomyces sp. RI-77 Journal of Antibiotics 2016 69 (9) 707-708.
DOI	10.1038/ja.2015.135	PMID	26732254

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
