COMPOUND NPA020651

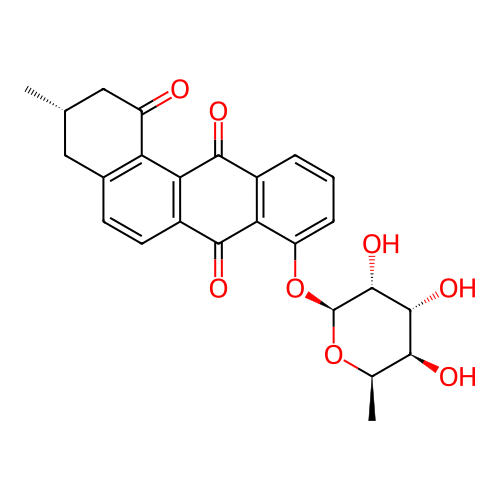

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA020651
CLUSTER ID	46
NODE ID	11
NAME	Atramycin B
FORMULA	C25H24O8
MOLECULAR WEIGHT (Da)	452.4590
ACCURATE MASS (Da)	452.1471
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	atratus BY90
InChIKey	MOHALZUCHLKMFC-DQOJGIMZSA-N
InChI	InChI=1S/C25H24O8/c1-10-8-12-6-7-14-19(17(12)15(26)9-10)22(29)13-4-3-5-16(18(13)21(14)28)33-25-24(31)23(30)20(27)11(2)32-25/h3-7,10-11,20,23-25,27,30-31H,8-9H2,1-2H3/t10-,11+,20-,23+,24+,25-/m0/s1
SMILES	C[C@H]1CC2=C(C(=O)C1)C3=C(C=C2)C(=O)C4=C(C3=O)C=CC=C4O[C@H]5[C@@H]([C@@H]([C@H]([C@H](O5)C)O)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Fujioka K; Furihata K; Shimazu A; Hayakawa Y; Seto H ISOLATION AND CHARACTERIZATION OF ATRAMYCIN A AND ATRAMYCIN B, NEW ISOTETRACENONE TYPE ANTITUMOR ANTIBIOTICS Journal of Antibiotics 1991 44 (9) 1025-1028.
DOI	10.7164/antibiotics.44.1025	PMID	1938611

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
