COMPOUND NPA020212

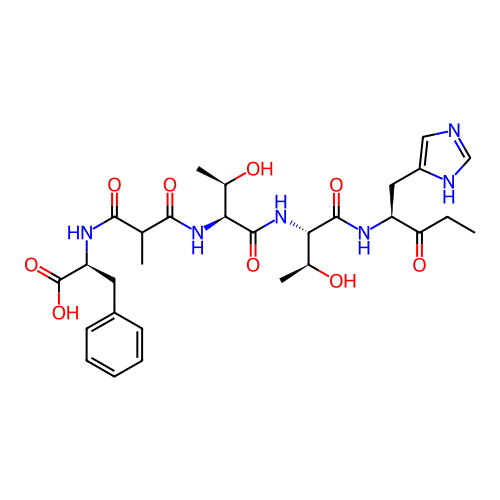

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA020212
CLUSTER ID	248
NODE ID	11
NAME	Macyranone D
FORMULA	C29H40N6O9
MOLECULAR WEIGHT (Da)	616.6720
ACCURATE MASS (Da)	616.2857
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Cystobacter
ORIGIN SPECIES	fuscus MCy9118
InChIKey	DRLRUDYYKDPJRO-GCLCDYDMSA-N
InChI	InChI=1S/C29H40N6O9/c1-5-22(38)20(12-19-13-30-14-31-19)32-27(41)23(16(3)36)35-28(42)24(17(4)37)34-26(40)15(2)25(39)33-21(29(43)44)11-18-9-7-6-8-10-18/h6-10,13-17,20-21,23-24,36-37H,5,11-12H2,1-4H3,(H,30,31)(H,32,41)(H,33,39)(H,34,40)(H,35,42)(H,43,44)/t15?,16-,17+,20-,21-,23-,24-/m0/s1
SMILES	CCC(=O)[C@H](CC1=CN=CN1)NC(=O)[C@H]([C@H](C)O)NC(=O)[C@H]([C@@H](C)O)NC(=O)C(C)C(=O)N[C@@H](CC2=CC=CC=C2)C(=O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Keller, Lena; Plaza, Alberto; Dubiella, Christian; Groll, Michael; Kaiser, Marcel; Müller, Rolf Macyranones: Structure, Biosynthesis, and Binding Mode of an Unprecedented Epoxyketone that Targets the 20S Proteasome Journal of the American Chemical Society 2015 137 (25) 8121-8130.
DOI	10.1021/jacs.5b03833	PMID	26050527

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Proteobacteria	LPSN	1224
Class	Deltaproteobacteria	LPSN	28221
Order	Myxococcales	LPSN	29
Family	Archangiaceae	LPSN	39
Genus	Cystobacter	LPSN	42

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
