COMPOUND NPA020119

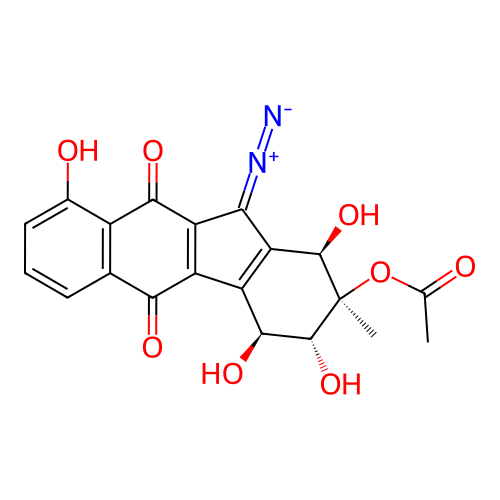

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA020119
CLUSTER ID	1259
NODE ID	1067
NAME	Kinamycin B
FORMULA	C20H16N2O8
MOLECULAR WEIGHT (Da)	412.3540
ACCURATE MASS (Da)	412.0907
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	murayamaensis
InChIKey	UZCOWBDCSCNWHJ-MTQWCTHYSA-N
InChI	InChI=1S/C20H16N2O8/c1-6(23)30-20(2)18(28)13-11(17(27)19(20)29)10-12(14(13)22-21)16(26)9-7(15(10)25)4-3-5-8(9)24/h3-5,17-19,24,27-29H,1-2H3/t17-,18+,19+,20+/m0/s1
SMILES	CC(=O)O[C@]1([C@@H]([C@H](C2=C([C@H]1O)C(=[N+]=[N-])C3=C2C(=O)C4=C(C3=O)C(=CC=C4)O)O)O)C

ORIGINAL ISOLATION REFERENCE

CITATION	Omura, S; Nakagawa, A; Yamada, H; Hata, T; Furusaki, A Structures and biological properties of Kinamycin A, B, C, and D Chemical and Pharmaceutical Bulletin 1973 1973 (5) 931-940.
DOI	10.1248/cpb.21.931	PMID	4727361

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
