Compounds

COMPOUND NPA019695

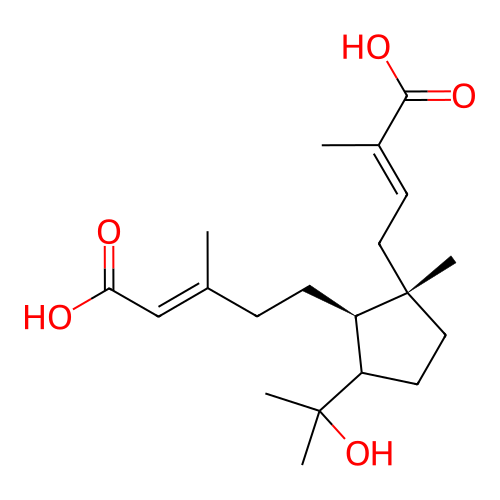

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA019695
CLUSTER ID	6309
NODE ID	4378
NAME	Cystodienoic acid
FORMULA	C20H32O5
MOLECULAR WEIGHT (Da)	352.4710
ACCURATE MASS (Da)	352.2250
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Cystobacter
ORIGIN SPECIES	ferrugineus Cbfe23
InChIKey	KPQXJVQFJZUGRC-OYMROJHFSA-N
InChI	InChI=1S/C20H32O5/c1-13(12-17(21)22)6-7-16-15(19(3,4)25)9-11-20(16,5)10-8-14(2)18(23)24/h8,12,15-16,25H,6-7,9-11H2,1-5H3,(H,21,22)(H,23,24)/b13-12+,14-8+/t15?,16-,20-/m1/s1
SMILES	C/C(=C\C(=O)O)/CC[C@@H]1C(CC[C@@]1(C)C/C=C(\C)/C(=O)O)C(C)(C)O

ORIGINAL ISOLATION REFERENCE

CITATION	Raju, Ritesh; Mohr, Kathrin I; Bernecker, Steffen; Herrmann, Jennifer; Müller, Rolf Cystodienoic acid: A new diterpene isolated from the myxobacterium Cystobacter sp Journal of Antibiotics 2015 68 (7) 473-475.
DOI	10.1038/ja.2015.8	PMID	25690355

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Proteobacteria	LPSN	1224
Class	Deltaproteobacteria	LPSN	28221
Order	Myxococcales	LPSN	29
Family	Archangiaceae	LPSN	39
Genus	Cystobacter	LPSN	42

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
