COMPOUND NPA001710

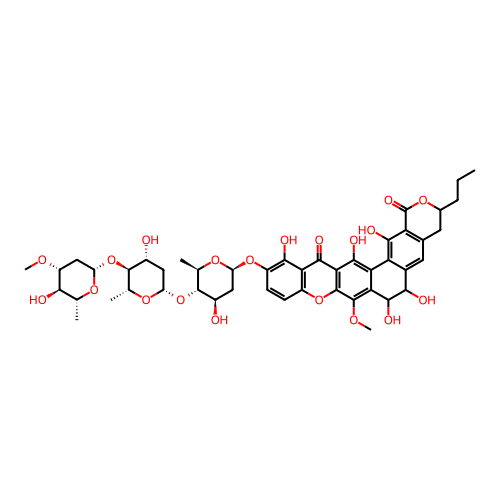

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA001710
CLUSTER ID	1091
NODE ID	941
NAME	FD-594
FORMULA	C47H56O20
MOLECULAR WEIGHT (Da)	940.9450
ACCURATE MASS (Da)	940.3365
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp. (TA-0256)
InChIKey	AUXDHORIJUSTHY-SHXGDCNXSA-N
InChI	InChI=1S/C47H56O20/c1-7-8-20-11-19-12-21-31(39(53)30(19)47(57)63-20)33-34(42(56)37(21)51)45(59-6)46-35(41(33)55)40(54)32-24(65-46)9-10-25(38(32)52)64-27-13-22(48)43(17(3)61-27)66-28-14-23(49)44(18(4)62-28)67-29-15-26(58-5)36(50)16(2)60-29/h9-10,12,16-18,20,22-23,26-29,36-37,42-44,48-53,55-56H,7-8,11,13-15H2,1-6H3/t16-,17-,18-,20?,22-,23-,26-,27+,28+,29+,36-,37?,42?,43-,44-/m1/s1
SMILES	CCCC1CC2=C(C(=C3C(=C2)C(C(C4=C(C5=C(C(=C43)O)C(=O)C6=C(O5)C=CC(=C6O)O[C@H]7C[C@H]([C@@H]([C@H](O7)C)O[C@H]8C[C@H]([C@@H]([C@H](O8)C)O[C@H]9C[C@H]([C@@H]([C@H](O9)C)O)OC)O)O)OC)O)O)O)C(=O)O1

ORIGINAL ISOLATION REFERENCE

CITATION	Qiao, Ya-Fang; Okazaki, Tadayasu; Ando, Tsutomu; Mizoue, Kazutoshi; Kondo, Katsuya; Eguchi, Tadashi; Kakinuma, Katsumi Isolation and characterization of a new pyrano[4',3':6,7]naphtho[1,2-b]xanthene antibiotic FD-594 Journal of Antibiotics 1998 51 (3) 282-287.
DOI	10.7164/antibiotics.51.282	PMID	9589063

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883
