COMPOUND NPA015746

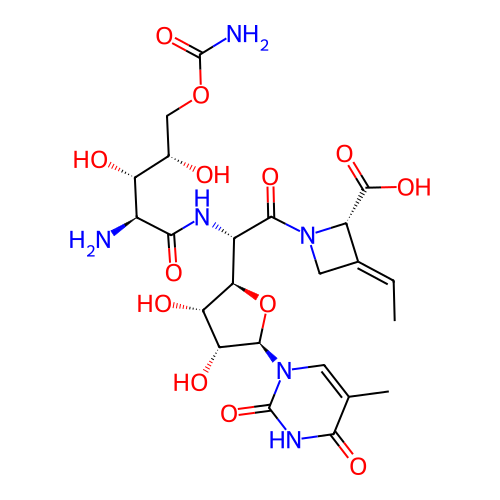

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA015746
CLUSTER ID	2271
NODE ID	1799
NAME	Polyoxin H
FORMULA	C23H32N6O13
MOLECULAR WEIGHT (Da)	600.5380
ACCURATE MASS (Da)	600.2027
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	cacaoi var asoensis
InChIKey	QRXHXAYQBZIPSH-XGYOSQDHSA-N
InChI	InChI=1S/C23H32N6O13/c1-3-8-5-28(12(8)21(37)38)19(36)11(26-18(35)10(24)13(31)9(30)6-41-22(25)39)16-14(32)15(33)20(42-16)29-4-7(2)17(34)27-23(29)40/h3-4,9-16,20,30-33H,5-6,24H2,1-2H3,(H2,25,39)(H,26,35)(H,37,38)(H,27,34,40)/b8-3+/t9-,10-,11-,12-,13+,14-,15+,16+,20+/m0/s1
SMILES	C/C=C/1\CN([C@@H]1C(=O)O)C(=O)[C@H]([C@@H]2[C@H]([C@H]([C@@H](O2)N3C=C(C(=O)NC3=O)C)O)O)NC(=O)[C@H]([C@@H]([C@H](COC(=O)N)O)O)N

ORIGINAL ISOLATION REFERENCE

CITATION	Isono K; Asahi K; Suzuki S Studies on polyoxins, antifungal antibiotics. 13. The structure of polyoxins. Journal of the American Chemical Society 1969 91 (26) 7490-7505.
DOI	10.1021/ja01054a045	PMID	5358618

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
