Compounds

COMPOUND NPA014222

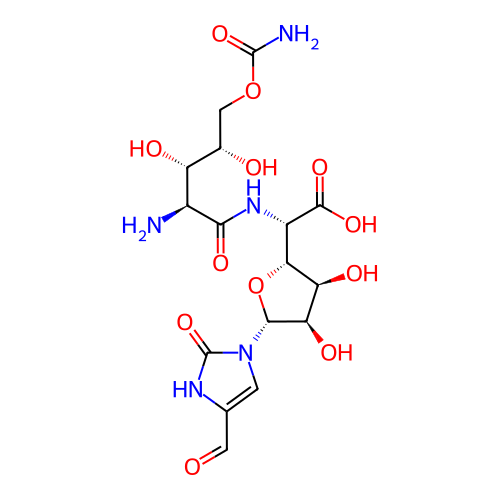

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA014222
CLUSTER ID	2271
NODE ID	1799
NAME	Polyoxin N
FORMULA	C16H23N5O12
MOLECULAR WEIGHT (Da)	477.3830
ACCURATE MASS (Da)	477.1343
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	piomogenus
InChIKey	OSWKWKBETDCHCA-OHRMCWGFSA-N
InChI	InChI=1S/C16H23N5O12/c17-6(8(24)5(23)3-32-15(18)30)12(27)20-7(14(28)29)11-9(25)10(26)13(33-11)21-1-4(2-22)19-16(21)31/h1-2,5-11,13,23-26H,3,17H2,(H2,18,30)(H,19,31)(H,20,27)(H,28,29)/t5-,6-,7-,8+,9-,10+,11+,13+/m0/s1
SMILES	C1=C(NC(=O)N1[C@H]2[C@@H]([C@@H]([C@H](O2)[C@@H](C(=O)O)NC(=O)[C@H]([C@@H]([C@H](COC(=O)N)O)O)N)O)O)C=O

ORIGINAL ISOLATION REFERENCE

CITATION	Uramoto, Masakazu; Matsuoka, Masayuki; Liehr, JG; Mccloskey, James A; Isono, Kiyoshi Polyoxin N, a new member of the polyoxin family Agricultural and Biological Chemistry 1981 45 (8) 1901-1902.
DOI	10.1080/00021369.1981.10864808	PMID	-

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
