COMPOUND NPA013825

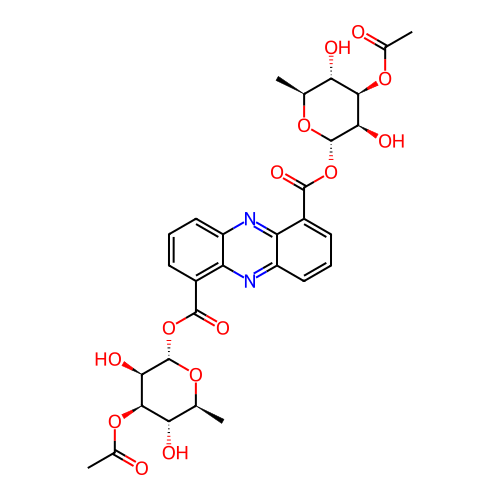

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA013825
CLUSTER ID	46
NODE ID	11
NAME	Solphenazine C
FORMULA	C30H32N2O14
MOLECULAR WEIGHT (Da)	644.5860
ACCURATE MASS (Da)	644.1854
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp. strain DL-93
InChIKey	WGUFRJNLVMUOII-CTLOOQFBSA-N
InChI	InChI=1S/C30H32N2O14/c1-11-21(35)25(43-13(3)33)23(37)29(41-11)45-27(39)15-7-5-9-17-19(15)31-18-10-6-8-16(20(18)32-17)28(40)46-30-24(38)26(44-14(4)34)22(36)12(2)42-30/h5-12,21-26,29-30,35-38H,1-4H3/t11-,12-,21-,22-,23+,24+,25+,26+,29-,30-/m0/s1
SMILES	C[C@H]1[C@@H]([C@H]([C@H]([C@@H](O1)OC(=O)C2=C3C(=CC=C2)N=C4C(=N3)C=CC=C4C(=O)O[C@H]5[C@@H]([C@@H]([C@H]([C@@H](O5)C)O)OC(=O)C)O)O)OC(=O)C)O

ORIGINAL ISOLATION REFERENCE

CITATION	Rusman, Yudi; Oppegard, Lisa M.; Hiasa, Hiroshi; Gelbmann, Christopher; Salomon, Christine E. Solphenazines A-F, glycosylated phenazines from Streptomyces sp. strain DL-93 Journal of Natural Products 2013 76 (1) 91-96.
DOI	10.1021/np3007606	PMID	23317013

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
