COMPOUND NPA013229

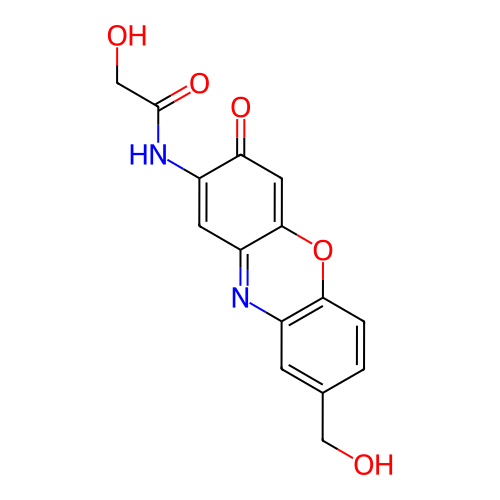

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA013229
CLUSTER ID	321
NODE ID	291
NAME	Chandrananimycin D
FORMULA	C15H12N2O5
MOLECULAR WEIGHT (Da)	300.2700
ACCURATE MASS (Da)	300.0746
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	griseus (HKI 0545, DSM 41823)
InChIKey	OQMHQWLKGNKBET-UHFFFAOYSA-N
InChI	InChI=1S/C15H12N2O5/c18-6-8-1-2-13-10(3-8)16-11-4-9(17-15(21)7-19)12(20)5-14(11)22-13/h1-5,18-19H,6-7H2,(H,17,21)
SMILES	C1=CC2=C(C=C1CO)N=C3C=C(C(=O)C=C3O2)NC(=O)CO

ORIGINAL ISOLATION REFERENCE

CITATION	Gomes, Patrícia Bezerra; Nett, Markus; Dahse, Hans-Martin; Hertweck, Christian Pitucamycin: Structural Merger of a Phenoxazinone with an Epoxyquinone Antibiotic Journal of Natural Products 2010 73 (9) 1461-1464.
DOI	10.1021/np100344u	PMID	20715808

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
