COMPOUND NPA011599

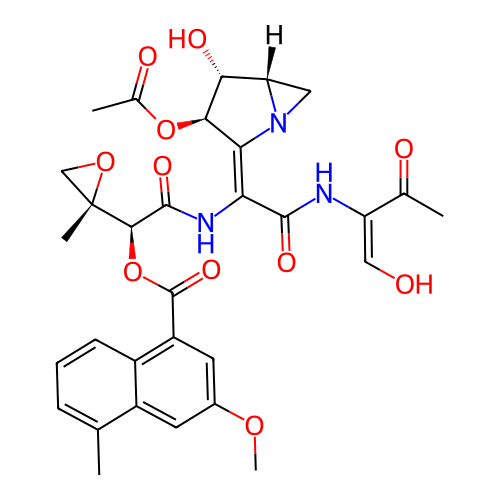

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA011599
CLUSTER ID	4485
NODE ID	3284
NAME	Azinomycin B
FORMULA	C31H33N3O11
MOLECULAR WEIGHT (Da)	623.6150
ACCURATE MASS (Da)	623.2115
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	sp.
InChIKey	QIKVYJOCQXXRSJ-TWEUQPGKSA-N
InChI	InChI=1S/C31H33N3O11/c1-14-7-6-8-18-19(14)9-17(42-5)10-20(18)30(41)45-27(31(4)13-43-31)29(40)33-23(28(39)32-21(12-35)15(2)36)24-26(44-16(3)37)25(38)22-11-34(22)24/h6-10,12,22,25-27,35,38H,11,13H2,1-5H3,(H,32,39)(H,33,40)/b21-12+,24-23+/t22-,25+,26+,27+,31-,34?/m0/s1
SMILES	CC1=CC=CC2=C(C=C(C=C12)OC)C(=O)O[C@H](C(=O)N/C(=C/3\[C@H]([C@@H]([C@H]4N3C4)O)OC(=O)C)/C(=O)N/C(=C/O)/C(=O)C)[C@@]5(CO5)C

ORIGINAL ISOLATION REFERENCE

CITATION	Yokoi, K; Nagaoka, K; Nakashima, T Azinomycins A and B, new antitumor antibiotics. II. Chemical structures Chemical and Pharmaceutical Bulletin 1986 34 (11) 4554-4561.
DOI	10.1248/cpb.34.4554	PMID	3829181

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
