Compounds

COMPOUND NPA009540

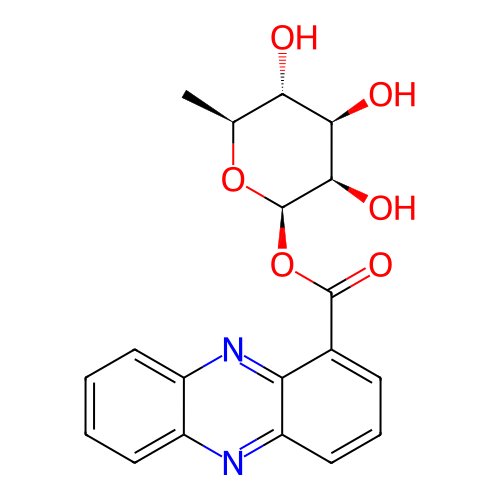

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA009540
CLUSTER ID	46
NODE ID	11
NAME	Endophenazine E
FORMULA	C19H18N2O6
MOLECULAR WEIGHT (Da)	370.3610
ACCURATE MASS (Da)	370.1165
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Kitasatospora
ORIGIN SPECIES	sp. MBT66
InChIKey	CQFWUUXJZDGIDM-UXLIUCIESA-N
InChI	InChI=1S/C19H18N2O6/c1-9-15(22)16(23)17(24)19(26-9)27-18(25)10-5-4-8-13-14(10)21-12-7-3-2-6-11(12)20-13/h2-9,15-17,19,22-24H,1H3/t9-,15-,16+,17+,19+/m0/s1
SMILES	C[C@H]1[C@@H]([C@H]([C@H]([C@H](O1)OC(=O)C2=CC=CC3=NC4=CC=CC=C4N=C32)O)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Wu, Changsheng; Van Wezel, Gilles P.; Hae Choi, Young Identification of novel endophenaside antibiotics produced by Kitasatospora sp. MBT66 Journal of Antibiotics 2015 68 (7) 445-452.
DOI	10.1038/ja.2015.14	PMID	25690357

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Kitasatospora	LPSN	2063

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
