COMPOUND NPA007264

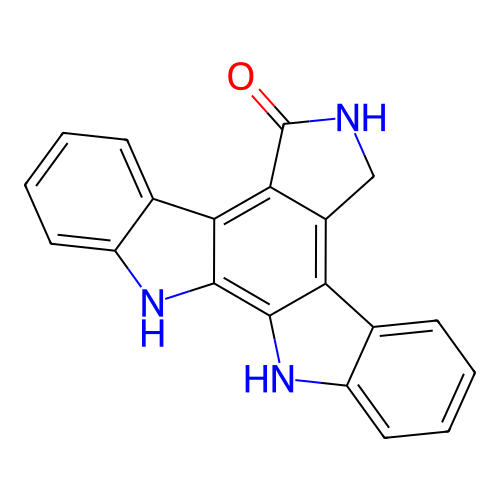

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA007264
CLUSTER ID	3267
NODE ID	20
NAME	K-252c
FORMULA	C20H13N3O
MOLECULAR WEIGHT (Da)	311.3440
ACCURATE MASS (Da)	311.1059
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Nocardiopsis
ORIGIN SPECIES	sp. K-252
InChIKey	MEXUTNIFSHFQRG-UHFFFAOYSA-N
InChI	InChI=1S/C20H13N3O/c24-20-17-12(9-21-20)15-10-5-1-3-7-13(10)22-18(15)19-16(17)11-6-2-4-8-14(11)23-19/h1-8,22-23H,9H2,(H,21,24)
SMILES	C1C2=C3C4=CC=CC=C4NC3=C5C(=C2C(=O)N1)C6=CC=CC=C6N5

ORIGINAL ISOLATION REFERENCE

CITATION	Yasuzawa, T; Iida, T; Yoshida, M; Hirayama, N; Takahashi, M; Shirahata, K; Sano, H The structures of the novel protein kinase C inhibitors K-252a, b, c and d Journal of Antibiotics 1986 39 (8) 1072-1078.
DOI	10.7164/antibiotics.39.1072	PMID	3759659

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptosporangiales	LPSN	85012
Family	Nocardiopsaceae	LPSN	83676
Genus	Nocardiopsis	LPSN	2013

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
