COMPOUND NPA007228

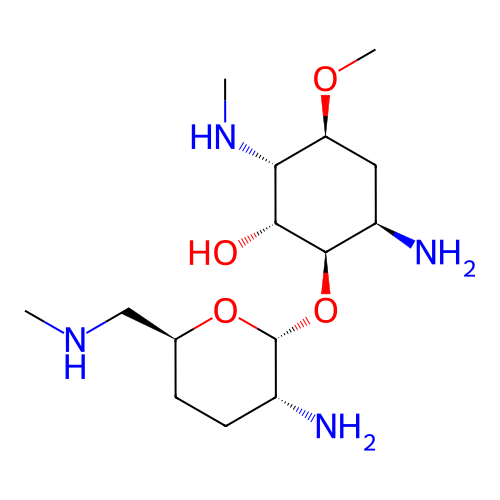

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA007228
CLUSTER ID	897
NODE ID	777
NAME	Istamycin B0
FORMULA	C15H32N4O4
MOLECULAR WEIGHT (Da)	332.4450
ACCURATE MASS (Da)	332.2424
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	tenjimariensis
InChIKey	GKYYNFPFPFRFFN-FWCUKHODSA-N
InChI	InChI=1S/C15H32N4O4/c1-18-7-8-4-5-9(16)15(22-8)23-14-10(17)6-11(21-3)12(19-2)13(14)20/h8-15,18-20H,4-7,16-17H2,1-3H3/t8-,9+,10+,11-,12+,13+,14+,15+/m0/s1
SMILES	CNC[C@@H]1CC[C@H]([C@H](O1)O[C@@H]2[C@@H](C[C@@H]([C@H]([C@H]2O)NC)OC)N)N

ORIGINAL ISOLATION REFERENCE

CITATION	Kondo, Shinichi; HORIUCHI, YUKIO; IKEDA, DAISHIRO; GOMI, SHUICHI; HOTTA, KUNIMOTO; OKAMI, YOSHIRO; UMEZAWA, HAMAO 2"-N-formimidoylistamycin A and B produced by Streptomyces tenjimariensis Journal of Antibiotics 1982 35 (8) 1104-1106.
DOI	10.7164/antibiotics.35.1104	PMID	7142010

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
