COMPOUND NPA006437

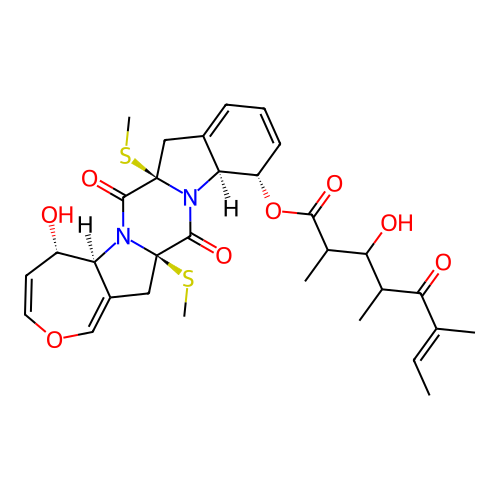

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA006437
CLUSTER ID	83
NODE ID	78
NAME	Graphiumin H
FORMULA	C31H38N2O8S2
MOLECULAR WEIGHT (Da)	630.7850
ACCURATE MASS (Da)	630.2070
ORIGIN ORGANISM TYPE	Fungus
ORIGIN GENUS	Graphium
ORIGIN SPECIES	sp. OPMF00224
InChIKey	DBVGKRIYSSJHML-UBWFRMKNSA-N
InChI	InChI=1S/C31H38N2O8S2/c1-7-16(2)25(35)17(3)26(36)18(4)27(37)41-22-10-8-9-19-13-30(42-5)28(38)32-23-20(15-40-12-11-21(23)34)14-31(32,43-6)29(39)33(30)24(19)22/h7-12,15,17-18,21-24,26,34,36H,13-14H2,1-6H3/b16-7+/t17?,18?,21-,22-,23-,24-,26?,30+,31+/m0/s1
SMILES	C/C=C(\C)/C(=O)C(C)C(C(C)C(=O)O[C@H]1C=CC=C2[C@@H]1N3C(=O)[C@@]4(CC5=COC=C[C@@H]([C@H]5N4C(=O)[C@@]3(C2)SC)O)SC)O

ORIGINAL ISOLATION REFERENCE

CITATION	Fukuda, Takashi; Shinkai, Minori; Sasaki, Eri; Nagai, Kenichiro; Kurihara, Yuko; Kanamoto, Akihiko; Tomoda, Hiroshi Graphiumins, new thiodiketopiperazines from the marine-derived fungus Graphium sp. OPMF00224 Journal of Antibiotics 2015 68 (10) 620-627.
DOI	10.1038/ja.2015.41	PMID	25899125

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Eukarya	-	2759
Kingdom	Fungi	MycoBank	4751
Phylum	Ascomycota	MycoBank	4890
Class	Sordariomycetes	MycoBank	147550
Order	Microascales	MycoBank	5592
Family	Microascaceae	MycoBank	5593
Genus	Graphium	MycoBank	1503932

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
