COMPOUND NPA006317

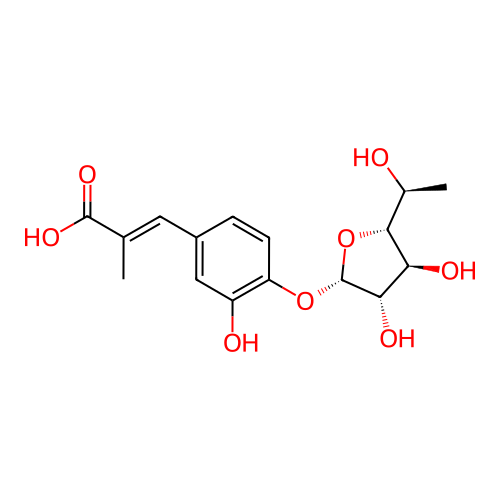

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA006317
CLUSTER ID	990
NODE ID	853
NAME	(E)-3-(3-hydroxy-4-O-a-fucofuranosylphenyl)-2-methylacrylic acid
FORMULA	C16H20O8
MOLECULAR WEIGHT (Da)	340.3280
ACCURATE MASS (Da)	340.1158
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	hygroscopicus NRRL 2388
InChIKey	KODWUJKPORHWMA-HDGKHBOVSA-N
InChI	InChI=1S/C16H20O8/c1-7(15(21)22)5-9-3-4-11(10(18)6-9)23-16-13(20)12(19)14(24-16)8(2)17/h3-6,8,12-14,16-20H,1-2H3,(H,21,22)/b7-5+/t8-,12-,13-,14+,16+/m0/s1
SMILES	C[C@@H]([C@@H]1[C@H]([C@@H]([C@@H](O1)OC2=C(C=C(C=C2)/C=C(\C)/C(=O)O)O)O)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Palaniappan, Nadaraj; Ayers, Sloan; Gupta, Shuchi; Habib, El-Sayed; Reynolds, Kevin A. Production of Hygromycin A Analogs in Streptomyces hygroscopicus NRRL 2388 through Identification and Manipulation of the Biosynthetic Gene Cluster Chemistry & Biology 2006 13 (7) 753-764.
DOI	10.1016/j.chembiol.2006.05.013	PMID	16873023

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
