COMPOUND NPA002511

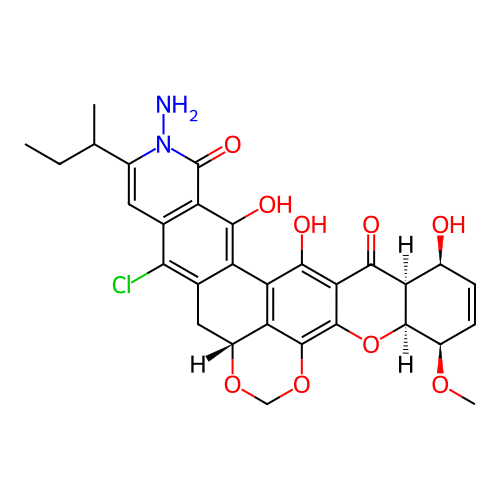

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA002511
CLUSTER ID	1483
NODE ID	1220
NAME	Sch 54445
FORMULA	C30H29ClN2O9
MOLECULAR WEIGHT (Da)	597.0200
ACCURATE MASS (Da)	596.1562
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Actinoplanes
ORIGIN SPECIES	sp. (SCC 2314, ATCC 55600)
InChIKey	LGOPVBMUGSRUOT-NLGWJYKOSA-N
InChI	InChI=1S/C30H29ClN2O9/c1-4-10(2)13-7-11-18(30(38)33(13)32)24(35)17-12(23(11)31)8-16-20-21(17)26(37)22-25(36)19-14(34)5-6-15(39-3)27(19)42-29(22)28(20)41-9-40-16/h5-7,10,14-16,19,27,34-35,37H,4,8-9,32H2,1-3H3/t10?,14-,15+,16+,19+,27+/m0/s1
SMILES	CCC(C)C1=CC2=C(C(=C3C(=C2Cl)C[C@@H]4C5=C3C(=C6C(=O)[C@H]7[C@H](C=C[C@H]([C@H]7OC6=C5OCO4)OC)O)O)O)C(=O)N1N

ORIGINAL ISOLATION REFERENCE

CITATION	Chu, Min; Truumees, Imbi; Mierzwa, Ronald; Terracciano, Joseph; Patel, Mahesh; Loebenberg, David; Kaminski, James J.; Das, Pradip; Puar, Mohindar S. Sch 54445: A new polycyclic xanthone with highly potent antifungal activity produced by Actinoplanes sp Journal of Natural Products 1997 60 (5) 525-528.
DOI	10.1021/np960737v	PMID	9170295

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Micromonosporales	LPSN	85008
Family	Micromonosporaceae	LPSN	28056
Genus	Actinoplanes	LPSN	1865

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
