COMPOUND NPA002317

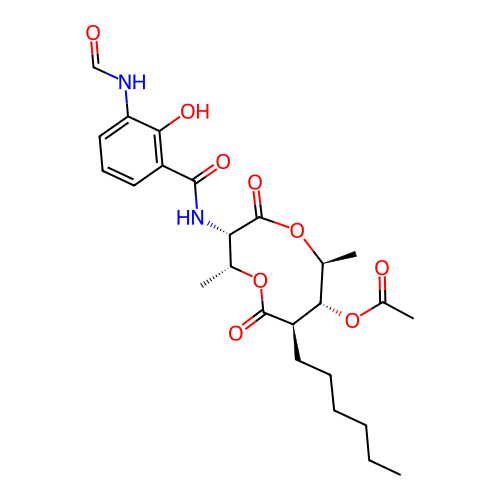

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA002317
CLUSTER ID	119
NODE ID	113
NAME	Antimycin A20
FORMULA	C25H34N2O9
MOLECULAR WEIGHT (Da)	506.5520
ACCURATE MASS (Da)	506.2264
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Streptomyces
ORIGIN SPECIES	antibioticus H74-18
InChIKey	JFLKVAOGXZTMRU-MGYRQHPQSA-N
InChI	InChI=1S/C25H34N2O9/c1-5-6-7-8-10-18-22(36-16(4)29)15(3)35-25(33)20(14(2)34-24(18)32)27-23(31)17-11-9-12-19(21(17)30)26-13-28/h9,11-15,18,20,22,30H,5-8,10H2,1-4H3,(H,26,28)(H,27,31)/t14-,15+,18-,20+,22+/m1/s1
SMILES	CCCCCC[C@@H]1[C@H]([C@@H](OC(=O)[C@H]([C@H](OC1=O)C)NC(=O)C2=C(C(=CC=C2)NC=O)O)C)OC(=O)C

ORIGINAL ISOLATION REFERENCE

CITATION	Xu, Lin-Ya; Quan, Xue-Sheng; Wang, Chen; Sheng, Hui-Fang; Zhou, Guang-Xiong; Lin, Bi-Run; Jiang, Ren-Wang; Yao, Xin-Sheng Antimycins A19 and A20, two new antimycins produced by marine actinomycete Streptomyces antibioticus H74-18 Journal of Antibiotics 2011 64 (10) 661-665.
DOI	10.1038/ja.2011.65	PMID	21847131

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Actinobacteria	LPSN	201174
Class	Actinobacteria	LPSN	-
Order	Streptomycetales	LPSN	85011
Family	Streptomycetaceae	LPSN	2062
Genus	Streptomyces	LPSN	1883
