COMPOUND NPA000038

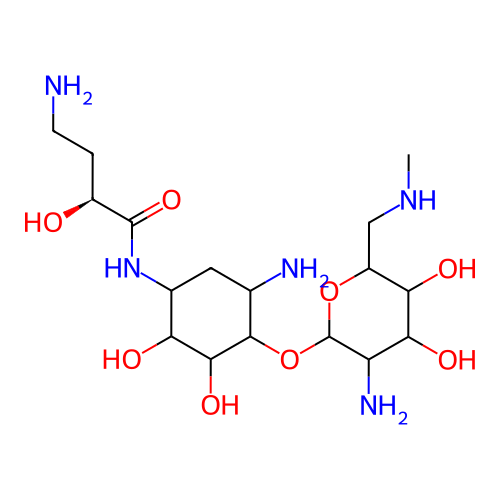

STRUCTURE

Image structure

EXPORT OPTIONS	PNG JSON SDF
PROJECT MOLECULE TO GLOBAL VIEW	See Global

EXTERNAL LINKS

PROPERTIES

NPAID	NPA000038
CLUSTER ID	36
NODE ID	35
NAME	AHB-6-Methylneamine
FORMULA	C17H35N5O8
MOLECULAR WEIGHT (Da)	437.4940
ACCURATE MASS (Da)	437.2486
ORIGIN ORGANISM TYPE	Bacterium
ORIGIN GENUS	Bacillus
ORIGIN SPECIES	circulans
InChIKey	ZEDBVEJBXNAZMF-MOYHMMMDSA-N
InChI	InChI=1S/C17H35N5O8/c1-21-5-9-12(25)13(26)10(20)17(29-9)30-15-6(19)4-7(11(24)14(15)27)22-16(28)8(23)2-3-18/h6-15,17,21,23-27H,2-5,18-20H2,1H3,(H,22,28)/t6?,7?,8-,9?,10?,11?,12?,13?,14?,15?,17?/m0/s1
SMILES	CNCC1C(C(C(C(O1)OC2C(CC(C(C2O)O)NC(=O)[C@H](CCN)O)N)N)O)O

ORIGINAL ISOLATION REFERENCE

CITATION	Takeda, K; Kinumaki, A; Okuno, S; Matsushita, T; Ito, Y Mutational biosynthesis of butirosin analogs. III. 6'-N-methylbutirosins and 3', 4'-dideoxy-6'-c-methylbutirosins, new semisynthetic aminoglycosides Journal of Antibiotics 1978 31 (10) 1039-1045.
DOI	10.7164/antibiotics.31.1039	PMID	81824

ORIGINAL ISOLATION TAXONOMY

RANK	NAME	DB LINK	NCBI
Domain	Bacteria	LPSN	2
Phylum	Firmicutes	LPSN	1239
Class	Bacilli	LPSN	91061
Order	Bacillales	LPSN	1385
Family	Bacillaceae	LPSN	186817
Genus	Bacillus	LPSN	1386

CLASSYFIRE

Show		Hide
DESCRIPTION	[[ getValue('description') ]]
KINGDOM	[[ getValue('kingdom') ]]
SUPER CLASS	[[ getValue('superclass') ]]
CLASS	[[ getValue('class') ]]
SUB CLASS	[[ getValue('subclass') ]]
MOLECULAR FRAMEWORK	[[ getValue('molecular_framework') ]]

NP CLASSIFIER

Show		Hide
SUPER CLASS	[[ getValue('superclass_results') ]]
CLASS	[[ getValue('class_results') ]]
PATHWAY	[[ getValue('pathway_results') ]]
IS GLYCOSIDE?	[[ getValue('isglycoside') ]]
